Vertical Effects
Verticalal effects are variations in the Z axis of each layer that can be controlled through a series of tools. These effects modify the original object and works with both POTTERWARE Objects and Uploaded Objects (.OBJ).
Wave Type
Select which mathematical wave should be used to modify the surface of your pottery. There are 5 different Wave Type settings: None, Sinewave, Sawtooth, Square, and Jitter.
| Wave | Effect |
|---|---|
| None | Printed with no effect applied |
| Sinewave | Smooth and gentle waves that undulate up and down |
| Sawtooth | A sharp, angular array of triangles zig-zagging vertically |
| Square | A repeating series of square waves, creating a notched vertical appearance |
| Jitter | Random-looking, undulating vertical waves |
All wave types wrap vertically around the original object profile based on other Vertical Effect settings. Changes to the wave type are easiest to see from the side.
Jitter Randomizer used in the Horizontal Effects section.Wave Repetitions
How many times the wave will wrap around the pottery vertically.
If you use many tight repetitions, you may need to adjust your Layer Height to ensure that clay does not get stuck to the nozzle. This is not a magic number and is design-dependent: your repetitions, wave type, and amplitude create a unique combination.
Wave Amplitude
This setting describes the length of the Vertical Effect in millimeters along the curve of each layer.
If you use a high amplitude, you may need to adjust your Layer Height to ensure that clay does not get stuck to the nozzle. This is not a magic number and is design-dependent: your repetitions, wave type, and amplitude create a unique combination.
Wave Effect Start
This allows the Vertical Effect to begin at a layer other than the first layer of the object. For example, if set to 10, the selected Vertical Effect will begin at a layer 10% from the bottom of the object.
Wave Effect End
This allows the Vertical Effect to end at a layer other than the last layer of the object. For example, if set to 90, the selected Vertical Effect will end at a layer 90% from the top of the object.
Effect Gradient
The Effect Gradient can increase from bottom to top (default) or increase to the middle of the design. The Increasing to Middle setting will have an interesting vertical pattern, but not as dramatic as the uneven edge created by Increasing to Top.
Increasing to Middle will allow the effect to gradually increase until the middle of the object, then gradually decrease towards the top of the object.

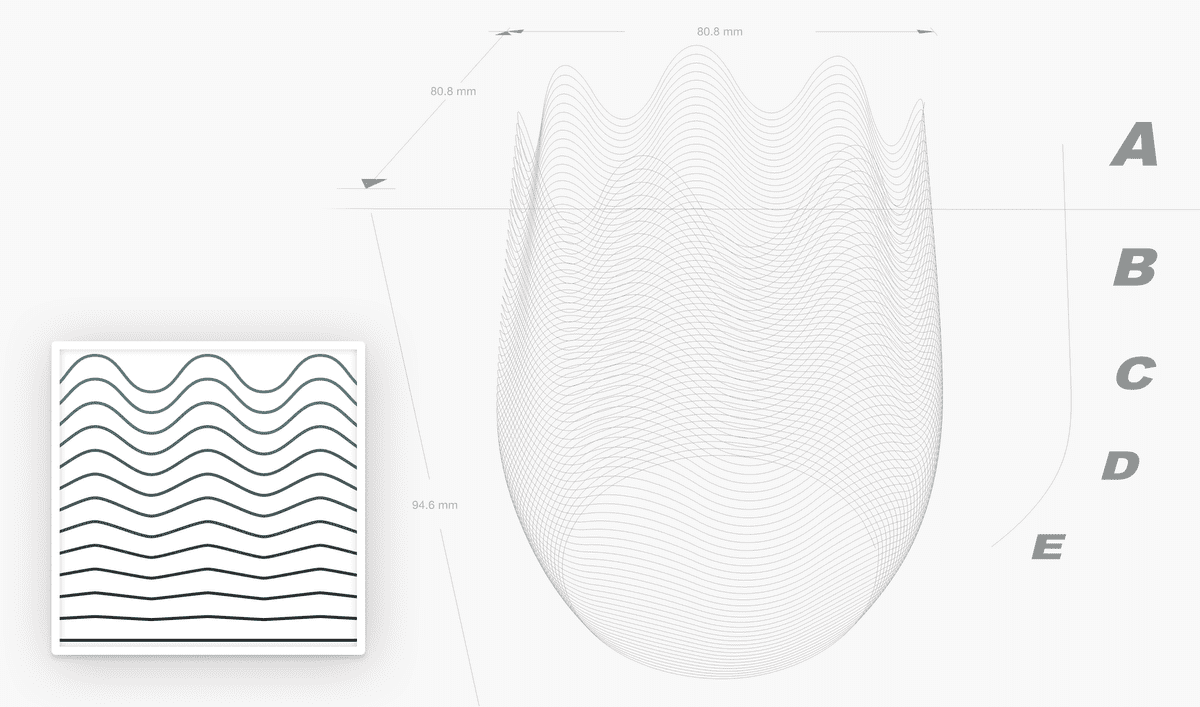

Increasing to Top transitions from a flat layer at the bottom to an effect layer at the top

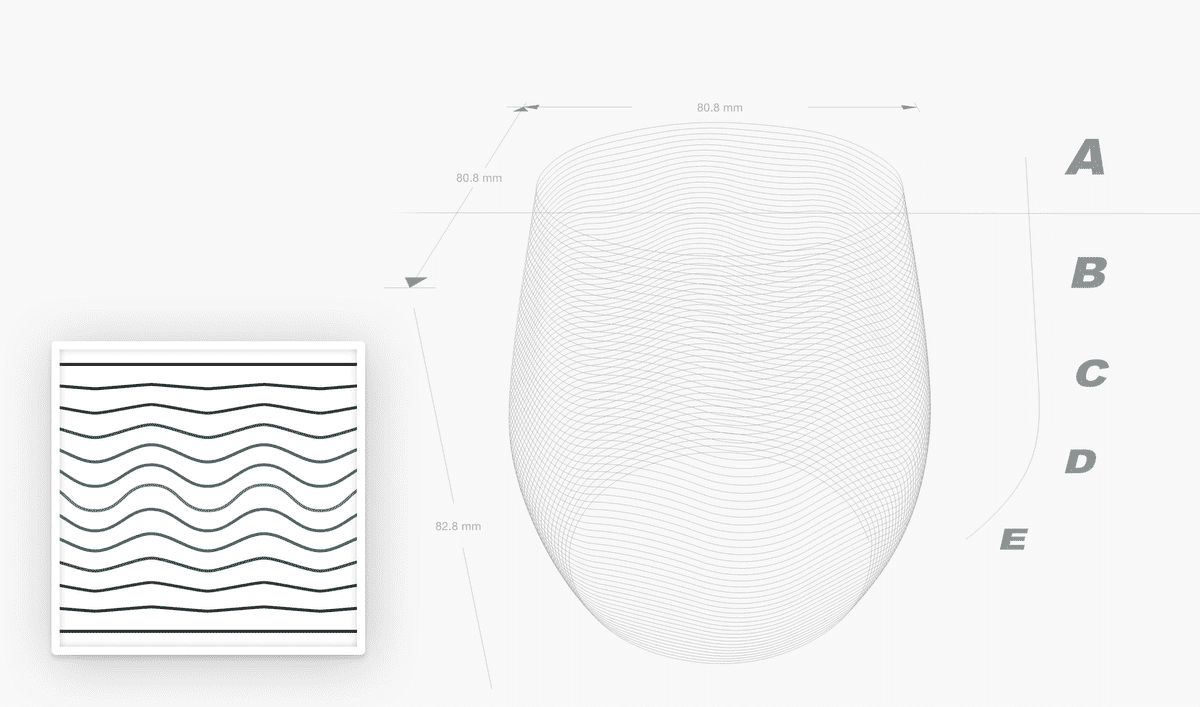

Increasing to Top transitions from a flat layer at the bottom to an effect layer in the middle, then back to a flat layer at the top
